シェルピンスキーのガスケット (Sierpinski gasket)
Last modified: 2018 年 12 月 30 日 03 時
シェルピンスキーのガスケットの作成
主な使用関数: Translatedata, Scaledata, Listplot.
コメント

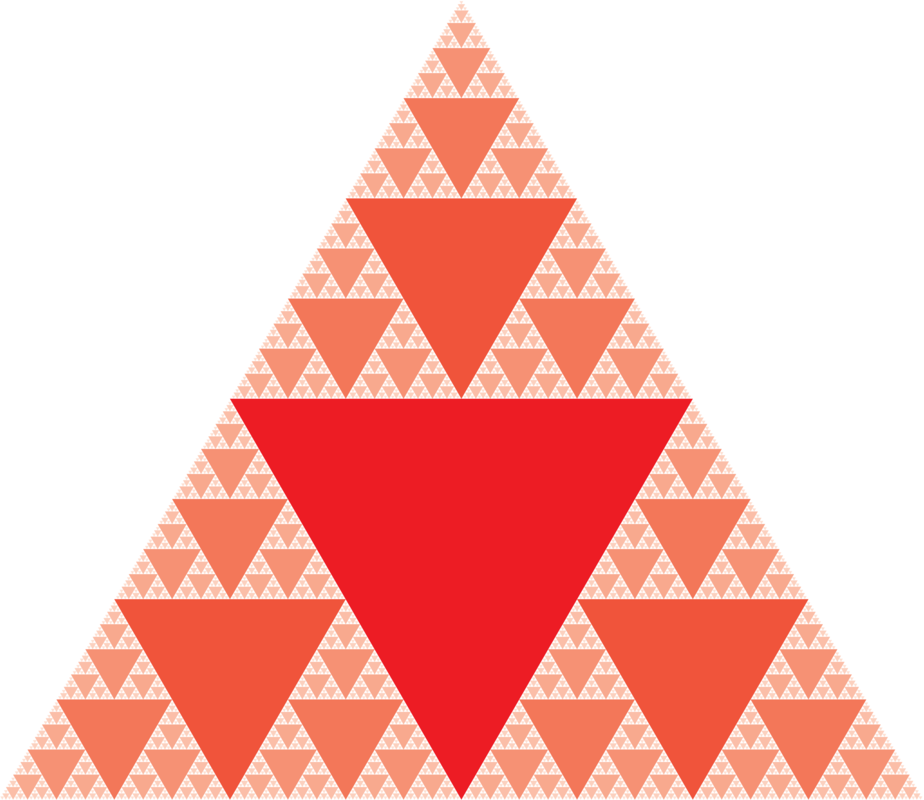

PDFに出力したものがこちら。"Beautiful Geometry", Eli Maor and Eugen Jost (邦題: 美しい幾何学)の表紙を参考に作りました。作図は、正三角形T1を縮小させて、CenterPPという中心点のリストをもとに平行移動させています。
[このページのトップへ]ソースコード
scilabファイル(.sce)のダウンロード
tic();
N=11; // N >= 3
M=2;
h=sqrt(3)*M;
T0=Listplot([0,2*h/3],[-M,-h/3], [M,-h/3], [0,2*h/3]);
T1=Listplot([0,-h/3],[-M/2,h/6], [M/2,h/6], [0,-h/3]);
L=M+4;
PP=list();
PP($+1)=[0,0];
PP($+1)=list([0,h/3], [-M/2,-h/6], [M/2,-h/6]);
for i=1:(N-2)
subSet=Scaledata(PP(2), 1/(2^i), 1/(2^i));
CenterPP=PP(i+1);
L=list();
for num=1:length(CenterPP)
CenterPoint=CenterPP(num);
tmp=Translatedata(subSet, CenterPoint(1), CenterPoint(2));
L=lstcat(L, tmp);
end
PP($+1)=L;
end
TT=list();
TT($+1)=T0;
TT($+1)=T1;
for i=1:(N-2)
subT=Scaledata(T1, 1/(2^i), 1/(2^i));
CenterPP=PP(i+1);
L=list();
for num=1:length(CenterPP)
CenterPoint=CenterPP(num);
tmp=Translatedata(subT, CenterPoint(1), CenterPoint(2));
L=lstcat(L, tmp);
end
TT($+1)=L;
end
Openfile('tex/Sierpinski_gasket_sample.tex');
Beginpicture('5cm');
Setcolor([0,1,1,0], 1);
Shade(T0, 0);
Shade(T1, 1);
r=2;
for i=3:N
tmpL=TT(i);
Setcolor([0,1,1,0], 1);
for num=1:length(tmpL)
Shade(tmpL(num), (N-i+2)^r/N^r*1);
end
end
Setcolor('black', 1);
Endpicture(0);
Closefile();
Setwindow(T0);
Openfile('tex/Sierpinski_gasket_sample0.tex');
Beginpicture('2cm');
Shade(T0, 1);
Endpicture(0);
Closefile();
Openfile('tex/Sierpinski_gasket_sample1.tex');
Beginpicture('2cm');
Shade(T0, 1);
Shade(T1, 0);
Endpicture(0);
Closefile();
T=toc();
disp(T);
for ind=2:(N-1)
Openfile(strcat(['tex/Sierpinski_gasket_sample', string(ind), '.tex']));
Beginpicture('2cm');
Shade(T0, 1);
Shade(T1, 0);
for i=3:(ind+1)
tmpL=TT(i);
for num=1:length(tmpL)
Shade(tmpL(num), 0);
end
end
Endpicture(0);
Closefile();
T=toc();
disp(ind);
disp(T);
end
T=toc();
disp(T);
